Silent
Sentinel X-1
Next-Gen ISR Platform for Tactical Superiority. Featuring proprietary edge-computing autonomy and rapid field deployment.
Mission Critical Capabilities
Engineered for high-stakes environments with proprietary composite frames and fully integrated avionics systems.
Rapid Deployment
Tool-less assembly gets you airborne in under 2 minutes. Modular payload bays allow for quick swaps between missions.
Stealth Design
Low acoustic signature propellers and a radar-absorbent composite airframe ensure the X-1 remains undetected.
AI-Powered Autonomy
Onboard edge-computing for real-time target recognition and tracking in GNSS-denied environments.
Built for Every Mission Scenario
Silent Sentinel X-1 is equipped with a comprehensive set of features to ensure reliable performance in the most demanding operational environments.
Long Endurance
3+ hours continuous flight
Fast Deploy
Tool-less assembly in minutes
Weatherproof
Wind resistance up to 43.2 km/h
Quick-Release Cargo Bay
Modular payload swaps
ADS-B
Automatic Dependent Surveillance
Remote Landing & Take-Off
Autonomous VTOL operations
Support DGPS
Centimeter-level positioning
Nav Lights
Day/night visibility compliance

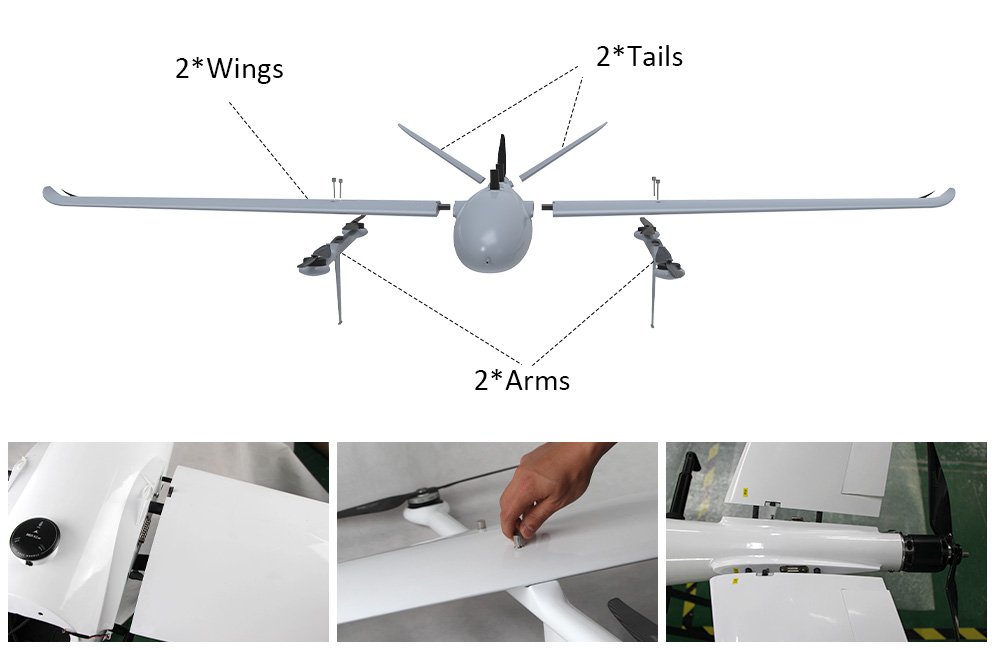

Rapid Field Assembly
Designed for fast deployment with a modular airframe. Two detachable wings, two tails, and two arms — all secured with tool-less quick-lock connectors for assembly in under 2 minutes.

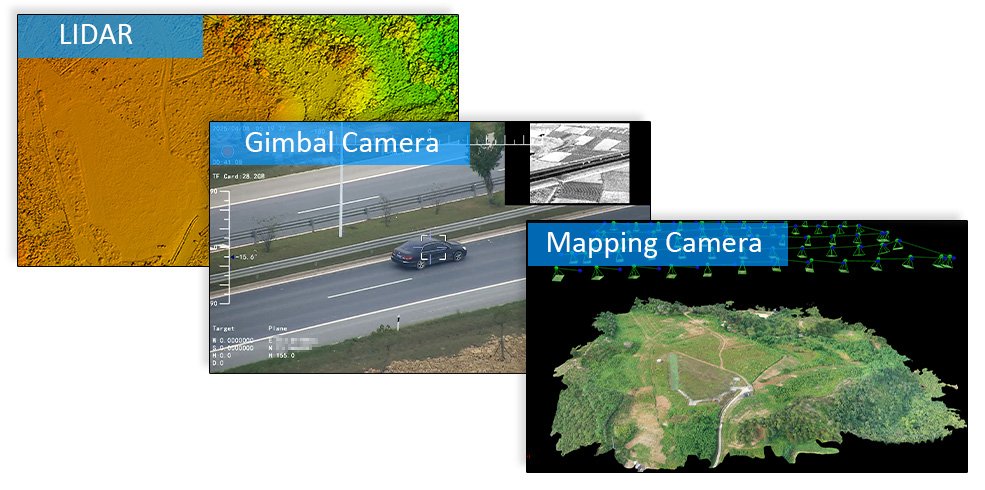

Multi-Sensor Payload Flexibility
Configure your Silent Sentinel X-1 with the mission-specific payload you need. Supports LIDAR, gimbal cameras, and mapping cameras for ISR, surveying, and precision agriculture missions.
Precision Engineering
Every component of the Sentinel X-1 is manufactured in-house, from the carbon fiber fuselage to the intelligent battery management system.
Intelligent Power
12S 33000mAh Li-Ion pack with self-heating for -20°C to 45°C operation.
Proprietary Autopilot
Triple-redundant IMU with FPGA-based processing architecture.
| Specification | Value | Notes |
|---|---|---|
| Max Takeoff Weight (MTOW) | 13.5 kg | Includes max payload |
| Weight w/o Battery & Payload | 6.58 kg | Airframe only |
| Frame Weight | 3.2 kg | Composite structure |
| Wingspan | 2,500 mm | Fixed-wing configuration |
| Length | 1,260 mm | |
| Height | 195 mm | Low profile design |
| Max Payload (Battery Included) | 6.92 kg | Battery + mission payload |
| Battery Weight | 4.72 kg | 12S 33000mAh×1 |
| Suggested Payload Weight | 1.2 kg | EO/IR Gimbal compatible |
| Endurance | 3 hours 20 min | At 12.5 kg take-off weight |
| Cruise Speed | 68.4–108 km/h | Optimal efficiency range |
| Max Speed | 150 km/h | Full throttle |
| Stall Speed | 55.8 km/h | 57.6 km/h @ Roll 25° / Pitch 15° |
| Minimum Circling Radius | 120 m | @ 68.4 km/h, Roll 18° |
| Anti-Wind Capability | 43.2 km/h | Stable flight |
| Max Operating Altitude | 3,500 m ASL | Above sea level |
| Operating Temperature | -20°C ~ 45°C | Self-heating battery system |
Seamlessly Integrated with DTYI-AX
Silent Sentinel X-1 works in full harmony with the DTYI-AX ground station platform. Plan missions, monitor real-time telemetry and control your fleet from a single interface.
- checkReal-time telemetry, live video and tactical map
- checkAIFlow drag-and-drop mission planning
- checkMulti-vehicle fleet management
- checkAI-driven BPMN process automation
